inches
inches
lbs/ft
lbf
inches
inches
Part Number
Guide Type

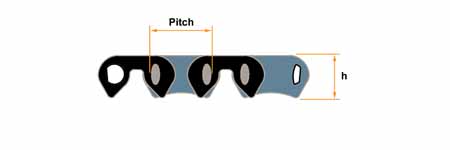

Pitch
Nominal Width

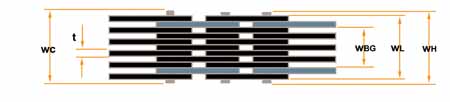

WBG
WH
WL
WC
Weight
Breaking Load
h Value
t Value
RPVType
DSG302
Side Guide
0.3750
0.50
0.25
0.58
0.48
0.63
0.40
1970
0.37
0.06
NA
